Aries PC/104-Plus SBCs with Intel E3800 Bay Trail Processor Target Rugged, I/O-Rich, High Performance Applications

Diamond Systems Corporation

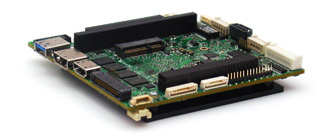

Diamond Systems' rugged, highly integrated Aries PC/104-Plus single board computer is based on the Intel E3800 "Bay Trail" processor family. Highlights of the Aries SBC include excellent CPU performance/power consumption ratio, high feature density in a compact size, integrated high-quality , versatile I/O expansion, conduction cooling for improved high temperature performance, and rugged construction.

Aries PC/104-Plus SBCs combine the excellent performance of the Bay Trail processor family, a wealth of PC I/O, and on-board data acquisition circuitry at a competitive price. Available configurations include the E3845 1.91GHz quad core processor and the E3826 1.46GHz dual core processor, with choice of 2GB or 4GB soldered memory. Dual independent displays are supported, with connections for dual channel 24-bit LVDS LCD, VGA, DisplayPort, and HDMI. Available PC I/O includes 3 USB 2.0 ports (1 can operate as USB 3.0), 4 RS-232/422/485 ports with fully programmable configuration, dual Gigabit Ethernet, and a SATA port that supports both on-board SATA DOM and off-board SATA devices.

The optional integrated data acquisition includes 16 16-bit channels with 250KHz sample rate, 4 16-bit channels with voltage and current outputs, a programmable waveform generator, and 22 programmable digital I/O lines, all supported by Diamond's free, industry-leading Universal Driver™ data acquisition programming library. An interactive, easy to use graphical control panel for Windows and is provided to control all data acquisition features.

Aries datasheet


Diamond Systems
555 Ellis Street
Mountain View, CA 94043
